Hot Dipped Galvanized Fiberglass Push Pull Rods Non Conductive With Wheels

Hot Dipped Galvanized Fiberglass Push Pull Rods Non Conductive With Wheels
Hot Dipped Galvanized Fiberglass Push Pull Rods Non Conductive With Wheels Hot Dipped Galvanized Fiberglass Push Pull Rods Non Conductive With Wheels

Large Image :  Hot Dipped Galvanized Fiberglass Push Pull Rods Non Conductive With Wheels

Product Details:
Place of Origin: NINGBOCHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS001
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 7days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / week
Detailed Product Description
Product Name: Push Pull Rod Accessories: Steel Frame, Wheels, Drawing Head
Material: E-glass Fiber Inner And Resin Application: Clean Pipeline
Diameter: 4.0~16mm Lengh: Per Customer Demands
High Light:

electrical wire pulling tools

,

stringing pulling tools

Hot Dipped Galvanized Continous Line Stringing Tools Cable Conduit Rod



Wire Pulling Rod Description

Hot Dipped Galvanized Continous Line Stringing Tools Cable Conduit Rod

Duct Rodders will equipped with different size reel according to the length of rod. There are wheels on the reel, which make it convenient for moving.Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.High tensile strength and bending properties, which make it to go through narrow pipes easily.Good temperature adaptability, the product will not soften in hot weather / nor become brittle in cold weather. Its usability will not be affected by temperature.

Cable Pulling Rods Application

1. Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.

2. Available push pull rodder

3. With cable roller

4. Lightweight and non-conductive

Duct Push Rodder

Specification Rod Diameter (mm) Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,
Rod Length (m) 30~500
Frame Spec.(mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color blue, yellow, red, white etc
Material Rod Inner Extruded by fiber glass and high strength resin at high temperature
Rod Outer High Density polyethylene coating
Iron Frame Steel with high-temperature sprayed plastic or Spray coating
Wheel rubber
Brake Yes
Drawing head copper
Physical Character Density 150g/m
Working temperature -40°C to +80°C
Breaking tension 4.5T
Bending Radius 295mm
Technology Pultrusion
Packing Inside plastic woven strip wind around the frame
Outside Wooden pallet and Wooden box

Note: Hot Dipped Galvanized Continous Line Stringing Tools Cable Conduit Rod

we offer various sizes and colors for any specific requirement as customers' demand

Features:

Hot Dipped Galvanized Continous Line Stringing Tools Cable Conduit Rod

1. Strong non-conductive fiberglass rod construction

2. Stainless steel drawing head

3. For longer conduit runs and underground duct

4. Rugged tubular steel reel with adjustable position.

5. Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod

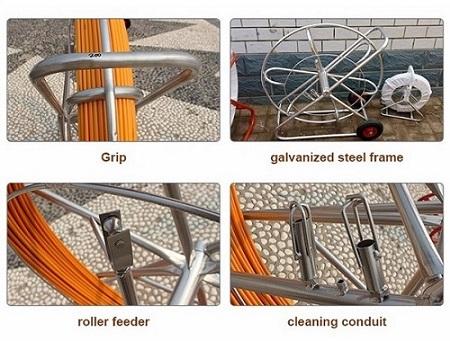

Traceable Duct Rod More Part Photo

Hot Dipped Galvanized Fiberglass Push Pull Rods Non Conductive With Wheels 0

Our Service:

1 Well trained sales team service for you.
2 Small MOQ, usually sample is available.
3 Support OEM & ODM: we can print logo or customs package according to our client’s requirement.
4 Top quality: we have professional QC team to control the quality.
5 Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity.
6 We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea.
7 Satisfactory service: we treat clients as friends and 24 hours customer service.
