Hydraulic Basic Construction Tools Single Acting For Cutting Amoured Cable

Hydraulic Basic Construction Tools Single Acting For Cutting Amoured Cable
Hydraulic Basic Construction Tools Single Acting For Cutting Amoured Cable Hydraulic Basic Construction Tools Single Acting For Cutting Amoured Cable

Large Image :  Hydraulic Basic Construction Tools Single Acting For Cutting Amoured Cable

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: CPC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Steel case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 pcs / month
Detailed Product Description
Model: CPC Name: Hydraulic Cutter
Cutting Force: 80KN Weight: 5.0kg
Using: Cutting Length: 570mm
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

Hydraulic Wire Rope Cutter For Cutting Amoured Cable,Hydraulic Cutting Tool



Use and Characteristic:

Hydraulic Wire Rope Cutter For Cutting Amoured Cable,Hydraulic Cutting Tool

Easy Operated Manual Hydraulic Wire Rope Cutter Light Weight for Cutting

1 The tool features a double apeed action:a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for cutting.

2 For ease of operation and comfort the operator the tool head can be fully rotated through 360 degrees.

The built in safety valve will bypass the oil supply when the maximum pressure is reached,and the pressure release system can easily be operated at any stage of compression.

3 With interchangeable dies.

4 Steel cutting heads which can be mounted in the most convenient position for the user working in difficult locations such as shafts or towers.

5 Easy to replace blades.

6 Spring return in single acting model.

Carrying box for protection and ease of transport.

Application:Hydraulic Wire Rope Cutter For Cutting Amoured Cable,Hydraulic Cutting Tool

Manual Hydraulic Wire Rope Cutter is used to cut wire rope,cable etc.

Hydraulic Cable Cutter Features:Hydraulic Wire Rope Cutter For Cutting Amoured Cable,Hydraulic Cutting Tool

Safe and Reliable;

Compact structure;

Light in weight;

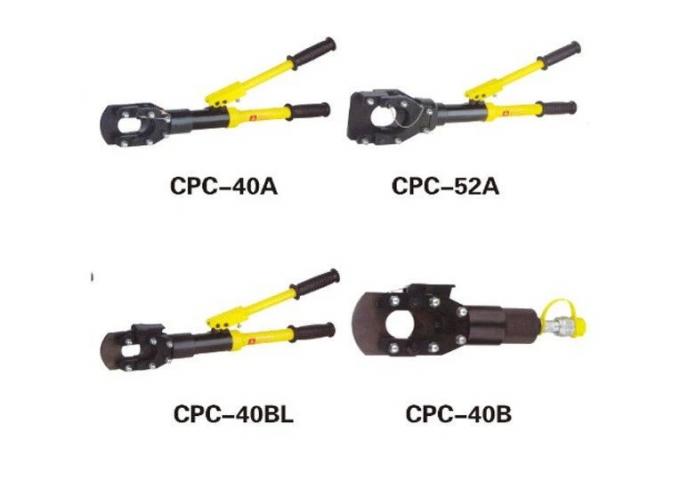

CPC Hydraulic Cutting Tools Technical Data

Hydraulic Wire Rope Cutter For Cutting Amoured Cable,Hydraulic Cutting Tool

Model Type Cutting Force(KN) Length(mm) Cutting Range Weight(KG)
CPC-40A 80 570

Telephone cable Φ40mm;

steel aluminum core armored cable Φ32mm

5.0
CPC-52A 120 615

Telephone cable Φ50mm;

steel aluminum core armored cable Φ45mm

7.0
CPC-40BL 120 480 ACSR Φ40mm; steel wire Φ28mm 5.0
CPC-40B 100 320

Telephone cable Φ40mm;

Steel aluminum core armored cable Φ28mm

3.6



Hydraulic Basic Construction Tools Single Acting For Cutting Amoured Cable 0

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality;

FAQ:

1. Are you a manufacturer or a trading company?
We are a professional fasteners manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
