70 KN Underground Cable Tools Mechanical Cable Drum Lifting Jack For Stringing Construction

70 KN Underground Cable Tools Mechanical Cable Drum Lifting Jack For Stringing Construction
70 KN Underground Cable Tools Mechanical Cable Drum Lifting Jack For Stringing Construction 70 KN Underground Cable Tools Mechanical Cable Drum Lifting Jack For Stringing Construction

Large Image :  70 KN Underground Cable Tools Mechanical Cable Drum Lifting Jack For Stringing Construction

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: SIZD7
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/month
Detailed Product Description
Item: 15143 Model: SIDZ-7
Rated Load: 70kn Cable Reel Dia: <=2500mm
Width: <=1200mm Weight: 450kg
High Light:

cable pulling device

,

underground cable installation equipment

70 KN Mechanical Cable Drum Lifting Jack Cable Reel Stand for 2500mm less Diameter Cable Reel



Detachable type cable reel stand

Item number

Model

(KN)

Rated Load

(MM)

Applicable Cable Reel

(KG)

Weight

Diameter Width

Hole Diameter

15141 SIDZ-3 30 ≤ Φ2000 ≤1200 Φ65-80 150
15142 SIDZ-5 50 ≤ Φ2400 ≤1200 Φ76-103 240
15143 SIDZ-7 70 ≤ Φ2500 ≤1700 Φ120 450

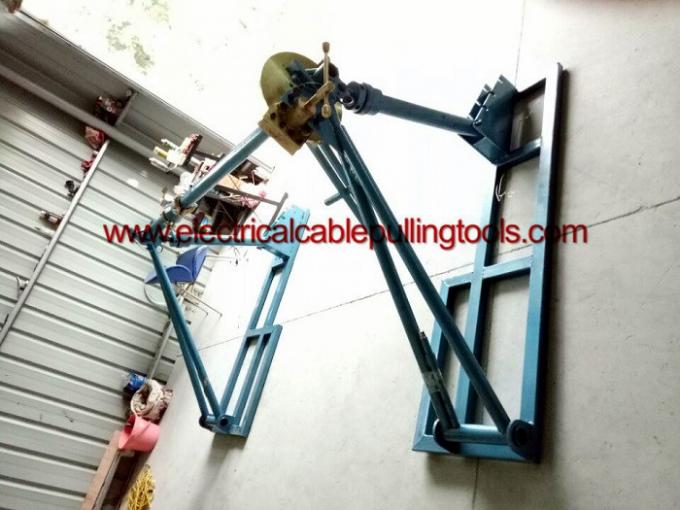

Mechnical Cable Drum Lifting Jack Cable Reel Stand Configuration:

During the construction of the line,the supporting cable reel is used for stringing construction.

 7Ton mechanical cable jack stand

1. applicable to be as the support of large cable reel in laying cables in the city

2. easy to move with the trundles in the bottom

3. can be equipped with a braking device, using the foot brake.

7Ton cable drum stand:

To support reel in tension releasing wire or mechanically pull wire and to brake the reel

can be disassembled into 3 pieces for the convenient transportation, packinged into wooden case after the wrapping.
