Handheld / Manual Hydraulic Crimping Tool With 16 - 400 Mm2 Crimping Range

Handheld / Manual Hydraulic Crimping Tool With 16 - 400 Mm2 Crimping Range
Handheld / Manual Hydraulic Crimping Tool With 16 - 400 Mm2 Crimping Range Handheld / Manual Hydraulic Crimping Tool With 16 - 400 Mm2 Crimping Range

Large Image :  Handheld / Manual Hydraulic Crimping Tool With 16 - 400 Mm2 Crimping Range

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: EP430
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: get the latest
Packaging Details: Plastic packing
Delivery Time: 2-4 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Detailed Product Description
Model: EP430 Crimping Force: 120KN
Crimping Range: 16-400mm2 Crimping Type: Hex
Name: Manul Crimping Tools Sroke: 32mm
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

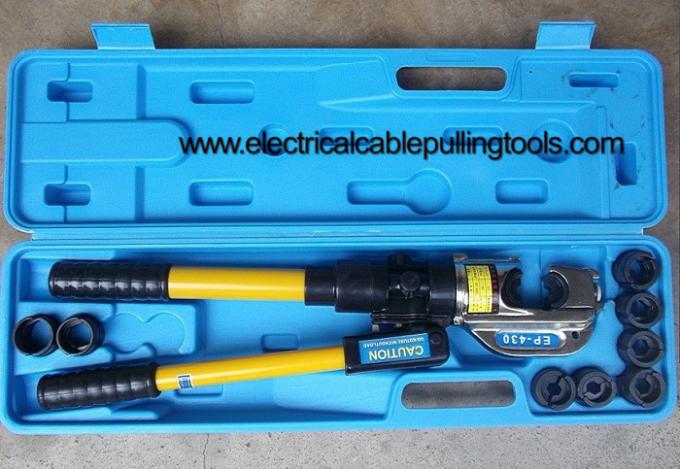

Model EP-430 Handheld / Manual Hydraulic Press Crimping Tool with 16-400 mm2 Crimping Range



Integral Hydraulic Crimping Pliers

Item number

16199 16200

Model

EP-430 EP-510

Crimping

force

120KN 130KN

Crimping

range

16-400mm² 16-400mm²
Crimping

type

hexagon crimping

hexagon crimping

Dies

50,70,95,120,150,

185,240,400mm²

50,70,95,120,150,

185,240,400mm²

Stroke

32mm 38mm

(CC)

Oil capacity

145cc 200cc

Length

approx.770mm approx.780mm

(KG)

Weight

approx.N.W7.1KG

G.W10.7KG

approx.N.W7.4KG

G.W11KG

Package

plastic box plastic box

Hydraulic Pex Crimping Tool Cable Lug Crimping Tool :

1.Compression mould can be replaced, quick and safe operation;

2.Compression configuration: 50,70,95,120,150,185,240,300,400mm2

Press tools is suitable for DIN.AWG.JIS.

There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.

Only one person can work.

Pump is connected to the tools, it can turn 180 degree when pressed on the head
