Aluminium Alloy Split Hydraulic Crimping Tool 80KN Crimping Force ISO Certification

Certification
China Ningbo Lingkai Electric Power Equipment Co., Ltd. certification
China Ningbo Lingkai Electric Power Equipment Co., Ltd. certification
I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Mr. Guillermo

Thanks for your support, open our Kenya market larger and better.

—— Mr. John

The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I'm Online Chat Now

Aluminium Alloy Split Hydraulic Crimping Tool 80KN Crimping Force ISO Certification

Aluminium Alloy Split Hydraulic Crimping Tool 80KN Crimping Force ISO Certification
Aluminium Alloy Split Hydraulic Crimping Tool 80KN Crimping Force ISO Certification Aluminium Alloy Split Hydraulic Crimping Tool 80KN Crimping Force ISO Certification

Large Image :  Aluminium Alloy Split Hydraulic Crimping Tool 80KN Crimping Force ISO Certification

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: CPC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: get the latest
Packaging Details: wooden case
Delivery Time: 2-3 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/day
Detailed Product Description
Model: CPC85H Crimping Force: 80KN
Cutting Range: Armoured CU/AL Cable 85mm Lenghth: 85mm
Packing: Wooden Case Weight: 6.7kg
High Light:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

80KN CPC-85 Aluminium Alloy Split Hydraulic Cable Cutter for less than 85mm Armored Cable



Split-type Hydraulic Cable Cutter Use and Characteristic

1 The blade is knock down structure.

2 Used to cut electrial cable,telecommunication cable etc.

3 It is made of aluminium alloy.

Item number

21449D 21449C 21449 21449A

Model

CPC-85H CPC-100B CPC-130A CPC-160A

(KN)

Crimping

force

80KN 80KN 80KN 80KN
Cutting

range

armored CU/AL

cable Φ85mm max

armored CU/AL

cable Φ100mm max

armored CU/AL

cable Φ130mm max

armored CU/AL

cable Φ160mm max

Stroke

85mm 100mm 130mm 160mm

Length

approx.480mm approx.620mm approx.650mm approx.750mm

(KG)

Weight

approx.N.W6.7KG

G.W9.2KG

approx.N.W12KG

G.W15KG

approx.N.W13.35KG

G.W16.5KG

approx.N.W15.35KG

G.W18.5KG

Package

wooden case wooden case wooden case wooden case

Configuration: Working with a manual hydraulic pump or an electric hydraulic pump.

Aluminium Alloy Split Hydraulic Crimping Tool 80KN Crimping Force ISO Certification 0

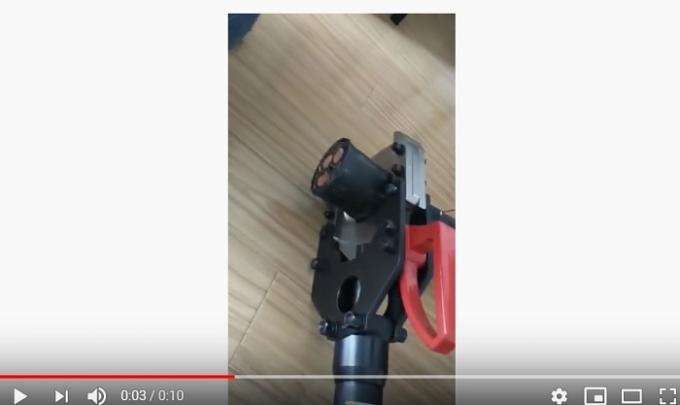

Please click the below photo to see the tools application on Youtube



Aluminium Alloy Split Hydraulic Crimping Tool 80KN Crimping Force ISO Certification 1
