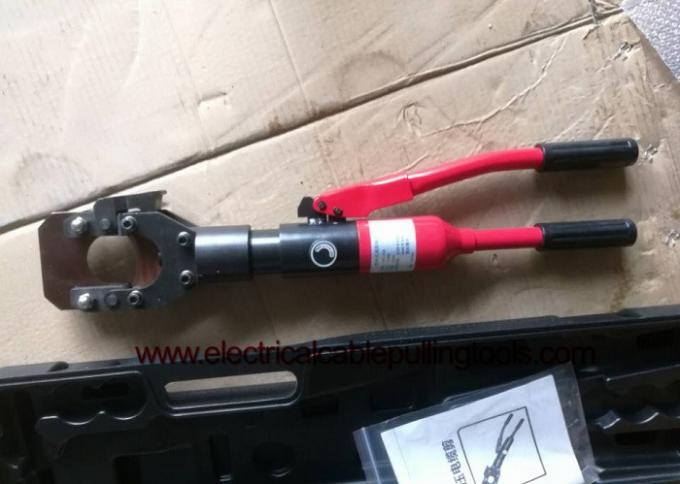

Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation

Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation
Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation

Large Image :  Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: CPC50A
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: get the latest
Packaging Details: plastic packing
Delivery Time: 2-3 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/day
Detailed Product Description
Model: CPC50A Crimping Force: 80Kn
Packing: Steel Case Steel Rope: 18mm
ACSR: 50mm Armored Cable: 50mm
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

Handheld Cutting Tool Hydraulic Wire Rope Cutter Cable Cutter for Cutting ASCR



Armored Cable Cutter Hydraulic Wire Rope Cutter

Item number

21447A 21447B 21447C

Model

CC-50A CPC-50A HT-50A

Crimping

force

100KN 80KN 70KN

Cutting

range

CU/AL

cable Φ50mm max

steel rope

cable Φ18mm max

steel rope

cable Φ15mm max

ACSR

cable Φ50mm ma

steel

strand Φ10mm max

armored CU/AL

cable Φ50mm max

ACSR

cable Φ50mm max

strand Φ16mm max

armored CU/AL

cable Φ50mm max

Stroke

50mm 50mm 40mm

Length

approx.620mm approx.620mm approx.660mm

(KG)

Weight

approx.N.W6.1KG

G.W9.1KG

approx.N.W6.2KG

G.W9.2KG

approx.N.W6.5KG

G.W8.9KG

Package

plastic box plastic box plastic box


Use and Characteristic

1.The tool features a double apeed action:a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for cutting.

2.For ease of operation and comfort the operator the tool head can be fully rotated through 360 degrees.

The built in safety valve will bypass the oil supply when the maximum pressure is reached,and the pressure release system can easily be operated at any stage of compression.

3. With interchangeable dies.

4.Steel cutting heads which can be mounted in the most convenient position for the user working in difficult locations such as shafts or towers.

5. Easy to replace blades.

6. Spring return in single acting model.

Carrying box for protection and ease of transport.



Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation 0
